Stainless 2 Way Solenoid Water Valve , 3/8” Electric Solenoid Valve For Water

Name: Stainless 2 Way Solenoid Water Valve 38 Electric Solenoid Valve For Water
Brand: ROUND STAR
Price: 1 USD

Wholesale Stainless 2 Way Solenoid Water Valve , 3/8” Electric Solenoid Valve For Water from china suppliers

Brand Name : ROUND STAR

Model Number : RSP

Certification : ISO CE ROHS

Place of Origin : CHINA (YUYAO CITY)

MOQ : 5 pieces

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : consult

Delivery Time : depend on the order quantity

Packaging Details : package for exporting standard

voltage : AC220～240V AC110V 50/60Hz 22VA DC24V DC12V 13W

interface size : 3/8" ～ 2＂

interface : G thread NPT thread Rc thread

sealing : NBR(-5～80℃ ) EPDM VITON

working pressure : 0.3~16 bar

coil : IP65 H degree

Contact Now

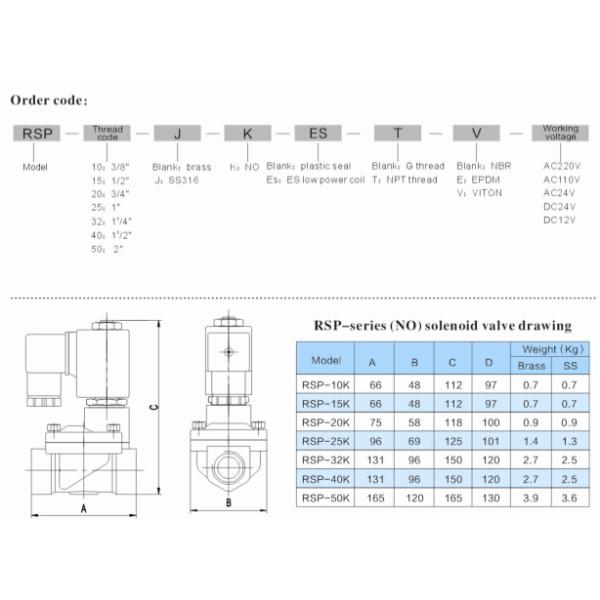

RSP series 2-way pilot operated normally open brass SS316 water air solenoid valve 3/8" ～ 2＂

RSP-series pilot operated(NO)solenoid valve specification table

(ES coil can match EPDM and VITON, but medium temperature must be ≤80℃)

interface	orifice (mm)	Cv	working pressure (bar)			medium temperature ℃	sealing material	coil insulation degree	power				normal order code
			min pressure	Max pressure					normal coil		Es coil		plastic seal AC220V G thread sealing material:blank:NBR E:EPDM V:VITON
				air gas water hotwater liquid light oil					VA	W	VA	W
				air gas water hotwater liquid light oil					AC 220 V	DC 24 V	AC 220 V	DC 24 V
				AC	DC				AC 220 V	DC 24 V	AC 220 V	DC 24 V	brass	SS316
3/8^〃	13	4.5	0.3	13	13	80	NBR	H	22	13	4	4	RSP-10K-AC220V	RSP-10-JK-AC220V
	13	4.5	0.3	13	13	130	EPDM	H	22	13			RSP-10K-E-AC220V	RSP-10-JK-E-AC220V
	13	4.5	0.3	13	13	120	VITON	H	22	13			RSP-10K-V-AC220V	RSP-10-JK-V-AC220V
1/2^〃	13	4.5	0.3	13	13	80	NBR	H	22	13	4	4	RSP-15K-AC220V	RSP-15-JK-AC220V
	13	4.5	0.3	13	13	130	EPDM	H	22	13			RSP-15K-E-AC220V	RSP-15-JK-E-AC220V
	13	4.5	0.3	13	13	120	VITON	H	22	13			RSP-15K-V-AC220V	RSP-15-JK-V-AC220V
3/4^〃	20	7.6	0.3	13	13	80	NBR	H	22	13	4	4	RSP-20K-AC220V	RSP-20-JK-AC220V
	20	7.6	0.3	13	13	130	EPDM	H	22	13			RSP-20K-E-AC220V	RSP-20-JK-E-AC220V
	20	7.6	0.3	13	13	120	VITON	H	22	13			RSP-20K-V-AC220V	RSP-20-JK-V-AC220V
1^〃	25	12	0.3	13	13	80	NBR	H	22	13	4	4	RSP-25K-AC220V	RSP-25-JK-AC220V
	25	12	0.3	13	13	130	EPDM	H	22	13			RSP-25K-E-AC220V	RSP-25-JK-E-AC220V
	25	12	0.3	13	13	120	VITON	H	22	13			RSP-25K-V-AC220V	RSP-25-JK-V-AC220V
1¹/4^〃	32	24	0.3	8	8	80	NBR	H	22	13	4	4	RSP-32K-AC220V	RSP-32-JK-AC220V
	32	24	0.3	8	8	130	EPDM	H	22	13			RSP-32K-E-AC220V	RSP-32-JK-E-AC220V
	32	24	0.3	8	8	120	VITON	H	22	13			RSP-32K-V-AC220V	RSP-32-JK-V-AC220V
1¹/2^〃	40	30	0.3	8	8	80	NBR	H	22	13	4	4	RSP-40K-AC220V	RSP-40-JK-AC220V
	40	30	0.3	8	8	130	EPDM	H	22	13			RSP-40K-E-AC220V	RSP-40-JK-E-AC220V
	40	30	0.3	8	8	120	VITON	H	22	13			RSP-40K-V-AC220V	RSP-40-JK-V-AC220V
2^〃	50	48	0.3	8	8	80	NBR	H	22	13	4	4	RSP-50K-AC220V	RSP-50-JK-AC220V
	50	48	0.3	8	8	130	EPDM	H	22	13			RSP-50K-E-AC220V	RSP-50-JK-E-AC220V
	50	48	0.3	8	8	120	VITON	H	22	13			RSP-50K-V-AC220V	RSP-50-JK-V-AC220V

Stainless 2 Way Solenoid Water Valve , 3/8” Electric Solenoid Valve For Water

Options:

sealing material: EPDM VITON

RC thread, digital timer, LED light connector

Germany NASS coil, Es low power energy saving coil(power AC 3VA DC 3W)

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China.

The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004. Stainless 2 Way Solenoid Water Valve , 3/8” Electric Solenoid Valve For Water
