Small Plastic Water Valves Normally Closed , 1 Inch Solenoid Valve DC24 / 12V

Yuyao No. 4 Instrument Factory
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Small Plastic Water Valves Normally Closed , 1 Inch Solenoid Valve DC24 / 12V

Brand Name : ROUND STAR

Model Number : 2W-SL

Certification : ISO CE ROHS

Place of Origin : CHINA (YUYAO CITY)

MOQ : negotiation

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : consult

Delivery Time : depend on the order quantity

Packaging Details : package for exporting standard

material : PA66 ( from German )

interface size : 1/2" ~ 2"

working pressure : 0~7 bar

options : ES low power energy saving coil(AC4VA DC4W)

options2 : LED light connector

voltage : AC220~240V AC110V 50/60Hz DC24/12V

Contact Now

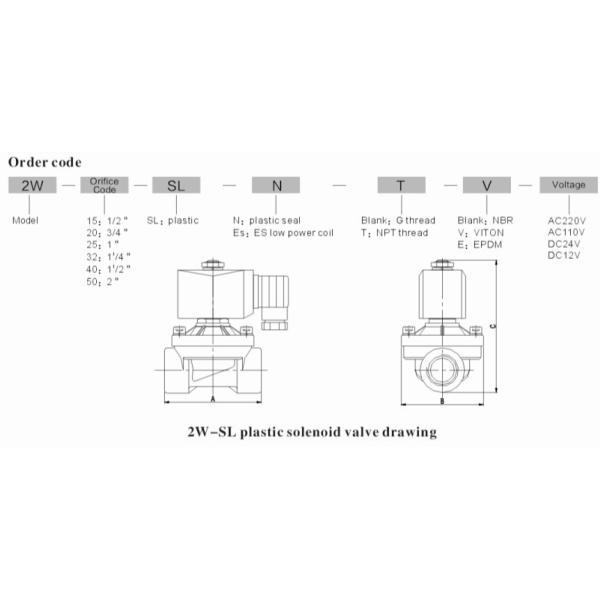

2W-SL series 2-way zero differential pressure normally closed German PA66 plastic water air solenoid valve 1/2" ~ 2"

model

Orifice size

( mm )

Interfaice size

Cv

Working pressure (bar dimension Normal order code

weight

(Kg)

AC

220V

DC

24V

length×width×height

A×B×C

Plastic seal, voltage AC220V

G thread, sealing material NBR

2W-15SLN 15 1/2" 4.8 0~7 0~6 76×68×107 2W-15SLN-AC220V 0.5
2W-20SLN 20 3/4" 7.6 0~7 0~6 80×68×111 2W-20SLN-AC220V 0.5
2W-25SLN 25 1" 12 0~7 0~6 107×82×117 2W-25SLN-AC220V 0.6
2W-32SLN 32 11/4" 22 0~6 0~5 140×112×160 2W-32SLN-AC220V 1.2
2W-40SLN 40 11/2" 30 0~6 0~5 140×112×170 2W-40SLN-AC220V 1.3
2W-50SLN 50 2" 48 0~6 0~5 159×130×190 2W-50SLN-AC220V 1.5

Small Plastic Water Valves Normally Closed , 1 Inch Solenoid Valve DC24 / 12V

Small Plastic Water Valves Normally Closed , 1 Inch Solenoid Valve DC24 / 12V

options:

LED light connector

ES low power energy saving coil(AC4VA DC4W)

Founded in 1965, Yuyao No.4 Instrument Factory has been a professional manufacturer of solenoid valves and has enjoyed an excellent reputation through the past more than 50 years in China.

The company is equipped with superior production machines, advanced process flows, complete testing systems; the products have sophisticated structure, reliable performance, fine outlook and reasonable price, covering over 40 series and 3000 specifications, having been exported to all over the whole world since 2004.
